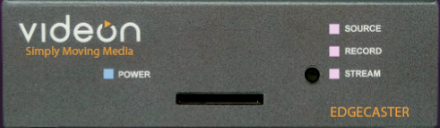

Power LED
Blue
- Solid
- Device is powered on
Red
- Solid
- Device receiving power, but power supply not in the correct state
- Unplug power for 5 seconds
Source LED
Blue
- Solid
- This means a source with a supported resolution detected
- This will still be solid blue if the video content is HDCP protected, even though HDCP content will not be encoded/streamed
Red
- Solid
- This means a source with an unsupported resolution is connected
- See our Product Datasheets for supported resolutions
Record LED
Blue
- Solid
- Recording successfully started with a valid source and storage device connected
Red
- Solid
- Either the video source or storage device is not valid/connected
Stream LED
Blue
- Solid
- An output is turned on and encoding to the configured destination
- Blinking
- An RTMP or SRT output is connecting to the configured destination
Red
- Solid
- An output is enabled, but not encoding to the configured destination
- This could be a connection issue, or that the video source is not valid/connected
- An output is enabled, but not encoding to the configured destination
- Blinking
- An output tried to connect to a destination, but was unable to
All LEDs
Pink/Purple
- Solid
- First check this article
- Contact support
- Blinking
- Factory reset successful, front button can be released
Linked Article
To see the expected behavior of Videon devices supplied with HDCP-protected source content, check out this article.
