Videon's newest platform, the LiveEdge® Max, comes out of the box with one of the most appealing new features being the front panel display!
What is the Front Panel Display?
The front panel display features a menu reporting which input(s) are selected and device information including the System IP address, MAC Address, Device Serial Number, and software version number.

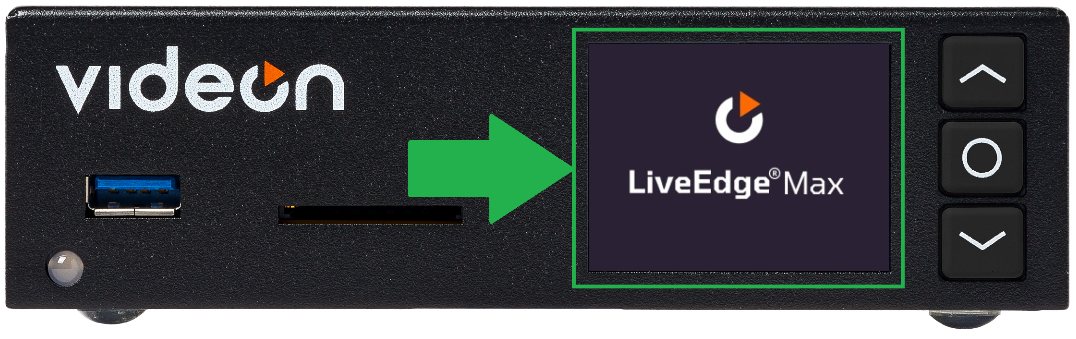

By default in V10.0.2, the front panel will display the LiveEdge® Max logo when powered on (as shown in the screenshot above). Pressing any of the keys to the right of the front panel will cause it to "wake up" so you can access the display's menu.
- The main page shows the options you have to select within the menu:
- Exit
- When the circle (center) button is pressed, this will allow you to exit the menu and return to the LiveEdge® Max logo.
- Input 1
- For software versions <V10.2.1: When the circle (center) button is pressed, this will display the Input number, Video source cable type that is selected for this input, Audio source detection that is selected for this input, and the detected Video Input Format.
- For software versions >V10.2.1: When the circle (center) button is pressed, this will display the Input number, Video source cable type that is selected for this input, Audio source detection that is selected for this input, and the detected Video Input Format. First, an input must be created that is attached to hardware channel "0" from either the local web UI or LiveEdge® Cloud Control. Then, the user may press the circle (center) button on Video to select whether they wish to use SDI or TPG (Test Pattern Generator) from this menu.
- Input 2
- For software versions <V10.2.1: When the circle (center) button is pressed, this will display the Input number, Video source cable type that is selected for this input, Audio source detection that is selected for this input, and the detected Video Input Format.
- For software versions >V10.2.1: When the circle (center) button is pressed, this will display the Input number, Video source cable type that is selected for this input, Audio source detection that is selected for this input, and the detected Video Input Format. First, an input must be created that is attached to hardware channel "1" from either the local web UI or LiveEdge® Cloud Control. Then, the user may press the circle (center) button on Video to select whether they wish to use SDI, HDMI, AUTO, or TPG (Test Pattern Generator) from this menu.
- Preview (software version >V10.2.1)
- Within this menu, the user is given options to preview either of the inputs that have been created from either the local web UI or LiveEdge® Cloud Control on the front panel display. Select either Input 1 or Input 2 using the circle (center) button to view the preview of the appropriate input. (See Preview example video above!)
- To exit Preview mode: enter this menu again and select None.
- Info
- When the circle (center) button is pressed, this will display the currently assigned IP Address, MAC Address, Serial Number, and Software Version.
- Shutdown
- When the circle (center) button is pressed, there will be options to Cancel or Shutdown. Shutdown will shut down the current processes on the device.
- The behavior in V10.2.1 will appear as follows over the next 60 seconds:
- The front panel display will go blank but remain illuminated while the device is shutting down. The device will turn off completely during this process and reboot.
- The power LED will be red at first, turn off temporarily, and turn red then yellow while rebooting.
- The internal cooling fans will ramp up while the device is rebooting and the LED will turn blue when the startup processes are complete.
- The behavior in V10.0.2 will appear as follows over the next 60 seconds:
- The front panel display will go blank but remain illuminated while the device is shutting down. Once the shutdown process is complete, it will turn off completely.
- The power LED will be blue at first, turn off temporarily, and finally turn red when the shutdown process is complete.
- The internal cooling fans will turn on constantly when the device is shutdown completely.
- Reset: Factory Reset (software version >V10.3.0)
- When the circle (center) button is pressed, there will be options to Cancel or Reset.
-
Factory Resetting will reset/remove the following:
-
Input Configurations
-
Encoder Configurations
-
Output Configurations
-
Network Settings (Factory Reset defaults to DHCP)
-
Device Name
-
Time Zone/NTP Settings
-
Additionally installed Docker containers/images and docker-compose.env files are also removed
-
- Exit
