LiveEdge® Max Front LED codes
Follow

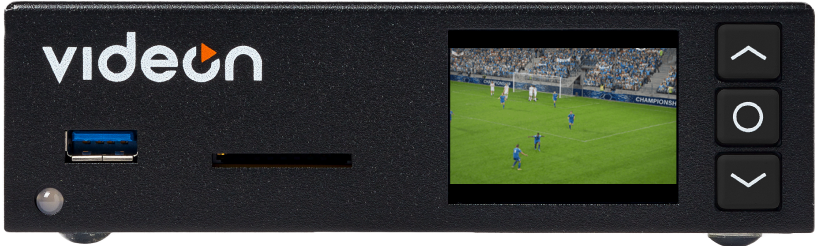

Front Panel Lower Left LED
Blue
- Solid
- Device is powered on and the boot process has been completed
- Flashing
- Software versions > 10.3
- Device is in the process of factory resetting
Red
- Solid
- Software versions < V10.2
- Device is powered on and is in the process of completing the boot-up phase
- Allow device to sit uninterrupted for 5 minutes to complete the boot-up phase, then the LED should turn Blue
- Software versions > V10.2
- Device is powered on and is beginning the boot-up phase
- Allow device to sit uninterrupted for 10 seconds or so and the LED should turn solid Yellow
Yellow (i.e., this color -> YELLOW)
- Solid
- Device is powered on and is in the process of completing the boot-up phase
- Allow device to sit uninterrupted for 5 minutes to complete the boot-up phase, then the LED should turn Blue
- Flashing
- Software versions > V10.2
- Device will flash between yellow and purple every 0.25 second while the device is in the process of updating.
- DO NOT interrupt power or remove any cables while the device is in the middle of update process!
Purple
- Flashing
- Software versions > V10.2
- Device will flash between yellow and purple every 0.25 second while the device is in the process of updating.
- DO NOT interrupt power or remove any cables while the device is in the middle of update process!
