We are excited to announce the release of version 10.1 introducing a groundbreaking new output: WHIP (WebRTC HTTP Ingest Protocol). Developed in collaboration with Millicast, WHIP represents a significant advancement in integrating media into WebRTC, enhancing its functionality and simplifying media ingestion for both software and hardware encoders.
This guide explains how to configure a WHIP output using the device's local Web UI.
Before you Begin
Make sure you have:
- A LiveEdge® device with WHIP output support and an active video input.
- Access to the device's local Web UI.
- A WHIP-compatible streaming destination.
- The WHIP ingest URL and an authorization token, if required by your streaming provider.
- An H.264 video profile if you plan to stream audio.
Note: WHIP supports video-only streaming. For streams with audio, use Opus rather than AAC.
How To Use WHIP
- Navigate to local Web UI.
- Under “Encoder Control”, on the left panel, select your Opus Audio Profile. If you don’t have one, you can create it by clicking “Add Profile” under Audio Profiles, then select “Opus” from the dropdown menu.

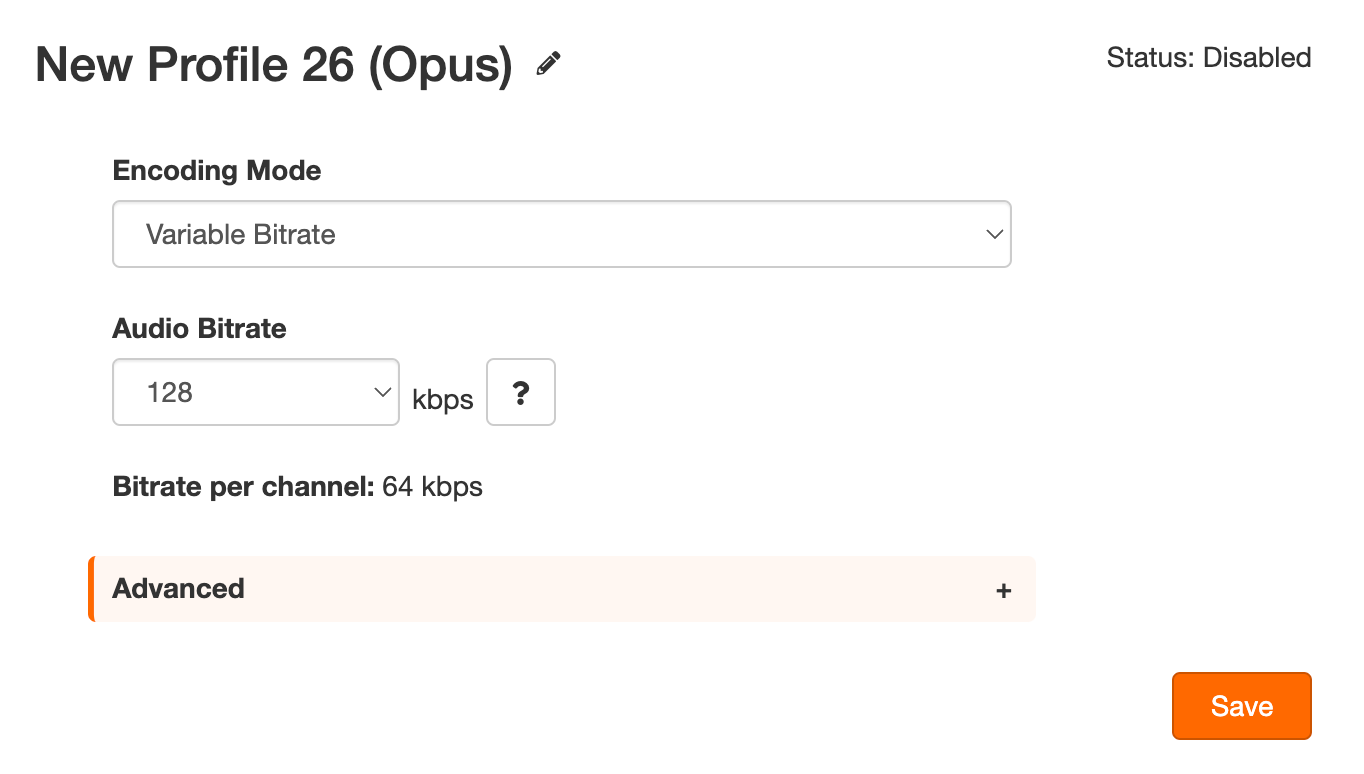

- You will see a new Opus Audio Profile like the screenshot below. Feel free to edit it to your preferences.

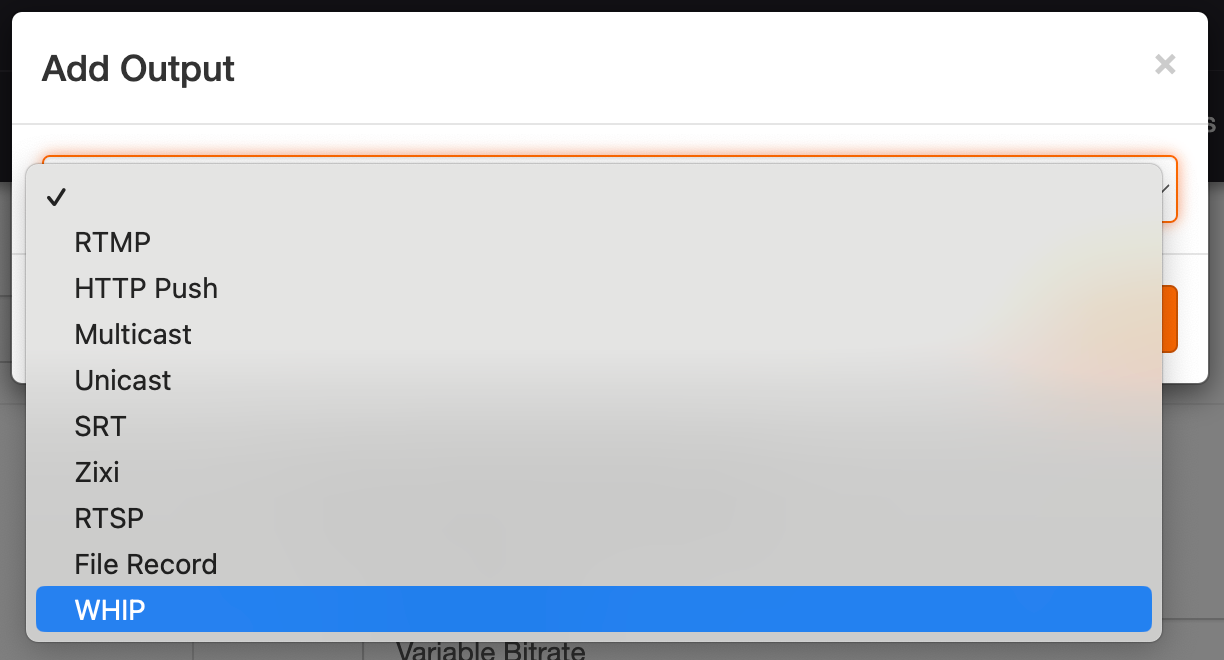

- Click “Add Profile” under “Outputs” on the left-hand panel. Select “WHIP” when prompted.
- You will see a WHIP output being created. You can enter the necessary configurations to stream to your desired WHIP endpoint.
